Specifications of HQEF25 Electric forklift :
Operating mode | Seat type |
Rated load | 2500 kg |
Max. lifting height | 3000 mm |
Min. turning radius | 2200 mm |
Door frame tilt angle | 6°/12° |
Lift speed | 280/380 mm/s |
Driving speed | 14/15 km/h |
Load center distance | 500 mm |
Turned way | Electric power steering |
Brake | Hydraulic brake |
Handbrake | Mechanical-hand |
Min. ground clearance | 135 mm |
Overall dimension | 2310*1150*2145 mm |
Fork length | 1070 mm |
Wheel base | 1515 mm |
Wheel tread | 970/950 mm |
Front tire size | 7.00-12 |
Rear tire size | 18*7-8 |
Battery | 48 v/500 Ah |
Drive motor power(KW) | AC11 |
Oil pump motor power(KW) | AC12 |

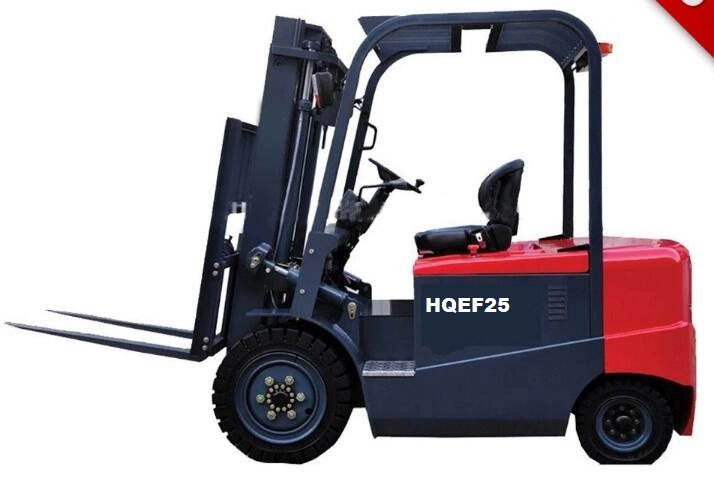

More photos of HQEF25 Electric forklift :
